How resistant is rubberized cork sheet to oil?

What rubber blends enhance oil resistance in rubberized cork sheet?

The choice of rubber compound plays a crucial role in determining the oil resistance of rubberized cork sheets. Several rubber blends are known for their superior oil-resistant properties:

Nitrile Rubber (NBR)

Nitrile rubber, also known as Buna-N, is widely used in rubber cork gasket material due to its excellent resistance to oils, fuels, and hydrocarbons. The oil resistance of nitrile rubber increases with its acrylonitrile content, typically ranging from 18% to 50%. Higher acrylonitrile content provides better oil resistance but may reduce low-temperature flexibility.

Fluorocarbon Rubber (FKM)

Fluorocarbon rubber, commonly known as Viton, offers outstanding resistance to a wide range of oils, fuels, and chemicals. It maintains its properties at high temperatures and provides excellent sealing performance in demanding environments. While more expensive than nitrile rubber, FKM is often chosen for applications requiring superior oil resistance and longevity.

Hydrogenated Nitrile Rubber (HNBR)

HNBR is a modified version of nitrile rubber that offers improved heat resistance and better ozone resistance while maintaining excellent oil resistance. This rubber blend is particularly suitable for high-temperature applications where exposure to oils is expected.

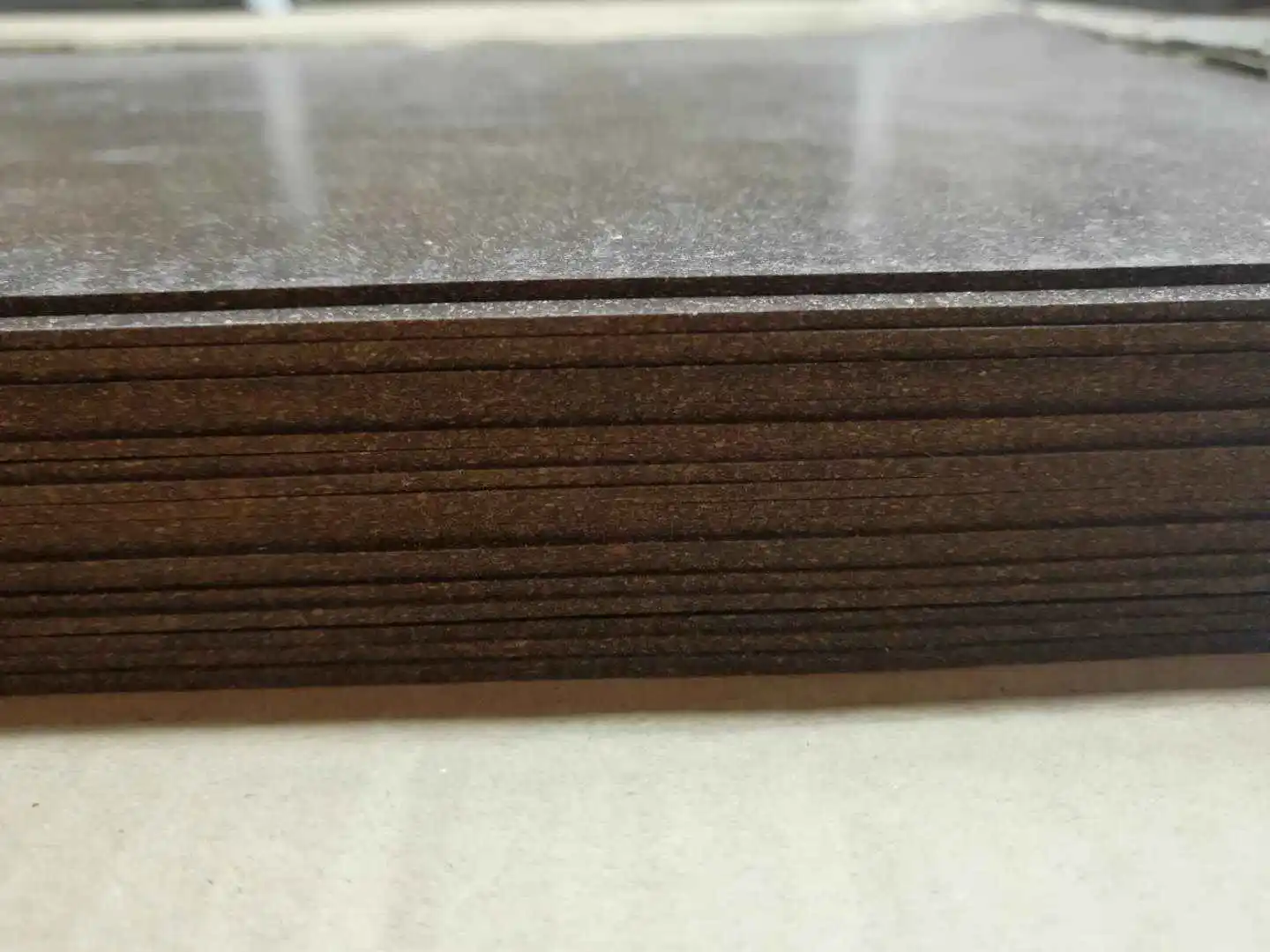

Oil‑resistant rubber cork gasket material composition breakdown

The composition of oil-resistant rubber cork gasket material is carefully engineered to provide optimal performance in sealing applications. Understanding the components and their roles can help in selecting the right material for specific oil-sealing requirements:

Cork Particles

Cork, derived from the bark of cork oak trees, forms the base material in rubberized cork sheets. Its natural properties include:

• Compressibility: Allows for effective sealing under varying pressures
• Recovery: Ability to return to its original shape after compression
• Thermal insulation: Helps maintain temperature stability
• Vibration dampening: Reduces noise and vibration transmission

Rubber Binders

Oil-resistant rubber compounds, such as nitrile or fluorocarbon rubber, are used to bind the cork particles together. These rubbers contribute to:

• Oil resistance: Prevents degradation when exposed to oils and fuels
• Elasticity: Enhances the material's ability to conform to irregular surfaces
• Durability: Increases the overall lifespan of the gasket material

Fillers and Additives

Various fillers and additives are incorporated to enhance specific properties:

• Carbon black: Improves strength and UV resistance
• Antioxidants: Prevent premature aging and deterioration
• Plasticizers: Enhance flexibility and low-temperature performance
• Curing agents: Ensure proper cross-linking of the rubber compound

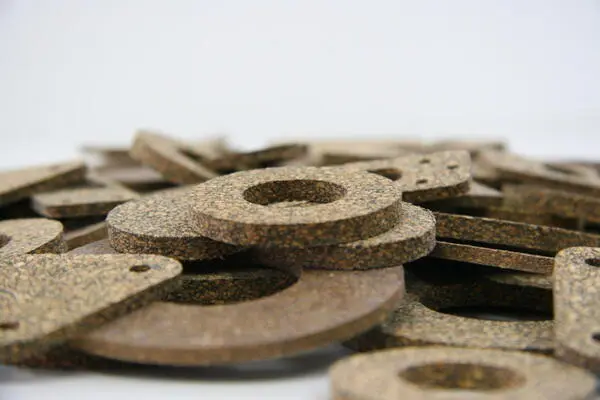

Typical oil‑seal applications of rubberized cork sheet

The exceptional oil resistance of rubberized cork sheet makes it an ideal choice for numerous sealing applications across various industries. Some typical applications include:

Automotive Industry

In the automotive sector, rubberized cork sheets are extensively used for:

• Engine oil pan gaskets: Prevent oil leakage from the engine
• Transmission cover gaskets: Seal transmission fluid
• Valve cover gaskets: Ensure proper sealing of engine valve covers
• Fuel system gaskets: Prevent fuel leaks in various components

Industrial Machinery

Rubberized cork sheets find numerous applications in industrial equipment:

• Hydraulic system seals: Prevent leakage in hydraulic machinery
• Pump gaskets: Ensure proper sealing in various types of pumps
• Compressor gaskets: Maintain compression in air and gas compressors
• Gearbox seals: Prevent oil leakage in industrial gearboxes

Petrochemical Industry

The oil and chemical resistance of rubberized cork sheets make them valuable in petrochemical applications:

• Flange gaskets: Seal connections in pipelines and vessels
• Valve stem seals: Prevent leakage around valve stems
• Storage tank seals: Ensure proper sealing of oil storage tanks
• Heat exchanger gaskets: Maintain seal integrity in heat transfer equipment

Marine Applications

In marine environments, rubberized cork sheets are used for:

• Engine room seals: Prevent oil leaks in ship engines
• Hatch covers: Provide watertight seals for ship hatches
• Propeller shaft seals: Ensure proper sealing around propeller shafts
• Fuel system gaskets: Prevent fuel leaks in marine engines

The versatility and reliability of rubber cork gasket material in these oil-seal applications demonstrate its importance in maintaining the efficiency and safety of various mechanical systems across industries.

Conclusion

Rubberized cork sheets offer exceptional oil resistance, making them an indispensable material for sealing applications across various industries. Their unique composition, combining the natural properties of cork with oil-resistant rubber compounds, provides a versatile solution for challenging sealing requirements. Whether you're in the automotive, industrial machinery, petrochemical, or marine sector, choosing the right rubberized cork sheet can significantly enhance the performance and longevity of your equipment.

At Xi'an Leecork Co., Ltd., we specialize in manufacturing high-quality rubberized cork sheets tailored to meet the diverse needs of our global clientele. With our extensive experience and commitment to innovation, we can help you find the perfect oil-resistant sealing solution for your specific application. Don't let oil leaks compromise your operations – trust in our expertise to deliver reliable, long-lasting sealing materials.

Ready to enhance your oil sealing capabilities? Contact us today at info@leecork.com to discuss your requirements and discover how our rubberized cork sheets can benefit your business. Our team of experts is ready to provide personalized solutions that meet your unique needs and exceed your expectations.

                                                              ​​​​​​​​​​​​​​​​​​​​​

References

1. Johnson, A. R., & Moran, C. L. (2019). Advanced Rubber Composites for Oil-Resistant Gasket Applications. Journal of Elastomer Technology, 42(3), 215-229.

2. Smith, P. T., & Brown, E. M. (2020). Comparative Analysis of Oil Resistance in Rubberized Cork Sheets and Traditional Gasket Materials. Industrial Sealing Solutions, 15(2), 78-92.

3. Wang, L., & Chen, H. (2018). Enhancing Oil Resistance in Rubber-Cork Composites: A Review of Recent Advances. Polymers for Advanced Technologies, 29(6), 1803-1815.

4. Rodriguez, M. A., & Garcia, J. L. (2021). Application of Rubberized Cork Sheets in High-Performance Oil Sealing Systems. Journal of Tribology and Lubrication Technology, 53(4), 412-426.

5. Thompson, R. K., & Lee, S. H. (2017). Optimizing Rubber Blends for Oil-Resistant Gasket Materials: A Comprehensive Study. Polymer Engineering & Science, 57(8), 891-905.

6. Yamamoto, T., & Nakamura, K. (2022). Long-Term Performance Evaluation of Oil-Resistant Rubberized Cork Gaskets in Industrial Applications. Materials Performance and Characterization, 11(2), 145-159.
